AR1-SPG4 - Sport/Race Sprung 4 Pad

Sport/Race Sprung 4 Pad for Honda Accord 2003-2008, Honda Civic 2001-2005, Honda Civic 2007-2008, Honda Civic 2008-2011, Honda Integra 2001-2006

Discontinued. No longer available.

Safe and secure payment
14 day return policy. Money-back guarantee
Experienced customer service

SKU:	AR1-SPG4
Weight (KG):	5.13
Disc Type:	Race disc (Ceramic)
Pressure Plate Type:	31
Torque Capacity	393 Nm (290 ft/lbs) = 52% over standard/OE
Feel:	Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Recommendation:	Recommended for high horsepower street or race use

Note: All non Type-S RSX models and 01-05 Civic Si models must use ACT Flywheel or factory RSX Type S Flywheel (Not included in Kits).

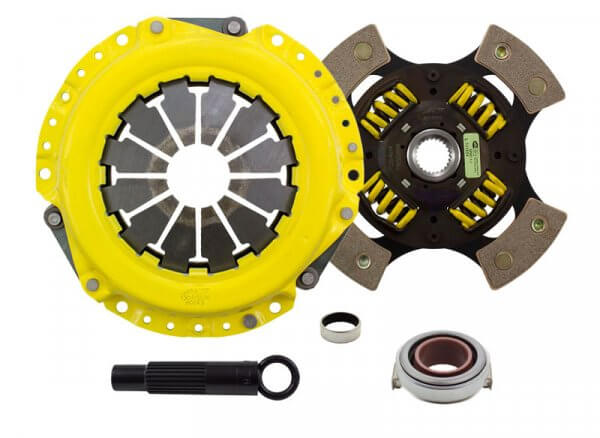

AR1-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Feel:

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Honda Accord 2003-2008 2.0L L4 1998cc (K20A6/K20Z2)
Honda Accord 2003-2008 2.4L L4 2354cc (K24A3) (Note: Must be used with EP3/DC5 (original or ACT) flywheel)
Honda Civic 2001-2005 2.0L L4 1998cc Type-R (K20A2)
Honda Civic 2007-2008 2.0L L4 1998cc (K20Z4)
Honda Civic 2008-2011 2.0L L4 1998cc (K20Z4)
Honda Integra 2001-2006 2.0L L4 1998cc Type-R (K20A)

Additional Information

Package Weight (kg)	6.7100
Disc Diameter (Inches)	8.4
Disc Diameter (Millimeters)	214
Material	Ceramic
Pressure Plate Type	31
Weight (KG)	5.13
Spline Count	24
Spline Size (Inches)	1-1/32
Torque Capacity (ft/lbs.)	290
Torque Capacity (Nm)	393
Torque Capacity Over OE	52%
