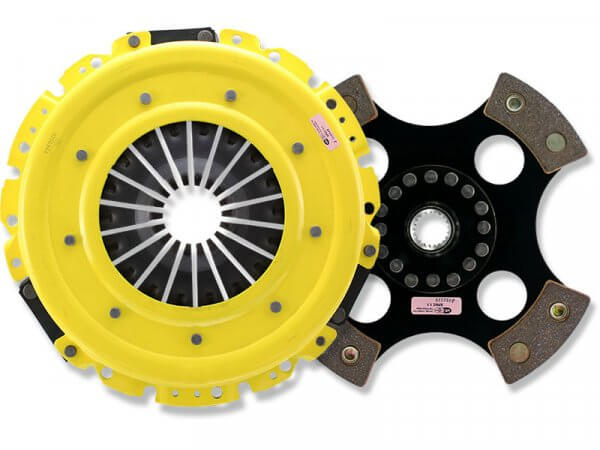

DN2-HDR4 - HD/Race Rigid 4 Pad

HD/Race Rigid 4 Pad for Chrysler, Dodge, Eagle, Mitsubishi

Available,but out of stock in our EU warehouse
Average delivery time:14 working days

€ 1108,93

Safe and secure payment
14 day return policy. Money-back guarantee
Experienced customer service

What's Included in this kit?

* Required Fields

Price as configured: €0.00

Qty:

SKU:	DN2-HDR4
Weight (KG):	8.85
Disc Type:	Race disc (Ceramic)
Pressure Plate Type:	33
Flywheel Tooth Count:	106
Torque Capacity	535 Nm (395 ft/lbs) = 115% over standard/OE
Feel:	Light to moderate pedal effort, aggressive engagement, increased gear rattle
Recommendation:	Recommended for race use only

Note: Conversion Kit - Replaces modular clutch. Must use ACT Flywheel (Included in kit)

DN2-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Feel:

Light to moderate pedal effort, aggressive engagement, increased gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for race use only

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Chrysler PT Cruiser Base 2001 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Base 2002 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Base 2003 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Base 2004 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Base 2006 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Classic 2001 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Classic 2002 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Classic 2005 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Dream 2002 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2001 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2002 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2003 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2004 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2005 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Limited 2006 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Street Cruiser 2006 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2001 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2002 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2003 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2004 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2005 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler PT Cruiser Touring 2006 2.4L L4 2429cc 148 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler Sebring LX 1995 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler Sebring LX 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler Sebring LX 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler Sebring LX 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Chrysler Sebring LX 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger Base 1995 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger Base 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger Base 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger Base 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger Base 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger ES 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger ES 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger ES 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Avenger ES 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ACR 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ACR 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ACR 2001 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ACR 2002 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Base 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Base 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Base 2001 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Base 2002 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ES 2000 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ES 2001 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon ES 2002 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon High Line 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon High Line 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon High Line 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon High Line 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon High Line 2000 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon R/T 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon R/T 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon R/T 2001 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon R/T 2002 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon R/T 2003 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)

Dodge Neon R/T 2004 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SE 2001 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SE 2002 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SE 2003 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SE 2004 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SE 2005 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SXT 2003 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SXT 2004 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon SXT 2005 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Sport 1996 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Sport 1997 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Sport 1998 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Dodge Neon Sport 1999 2.0L L4 1996cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon Base 1996 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon Base 1997 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon Base 1998 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon ESi 1995 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon ESi 1996 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon ESi 1997 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Eagle Talon ESi 1998 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse Base 1996 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse Base 1997 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse GS 1995 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse GS 1996 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse GS 1997 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse GS 1998 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse GS 1999 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse RS 1995 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse RS 1996 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse RS 1997 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse RS 1998 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)
Mitsubishi Eclipse RS 1999 2.0L L4 1997cc 122 CID (Note: Must be used with ACT flywheel and pressure plate)

Additional Information

Package Weight (kg)	10.4300
Disc Diameter (Inches)	8.8
Disc Diameter (Millimeters)	224
Material	Ceramic
Flywheel Tooth Count	106
Pressure Plate Type	33
Weight (KG)	8.85
Spline Count	17
Spline Size (Inches)	15/16
Torque Capacity (ft/lbs.)	395
Torque Capacity (Nm)	535
Torque Capacity Over OE	115%
