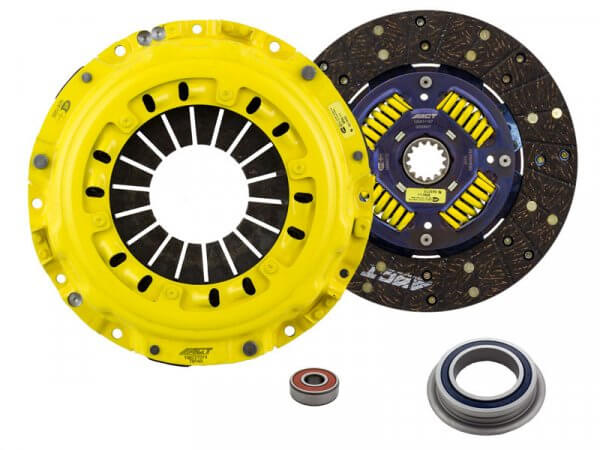

TS4-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Feel:
Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattleLife:
Longer friction life, extended by ACT's exclusive diaphragm designQuality:
Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fadeRecommendation:
Recommended for street and race useDifference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability- Toyota Supra MK4 (A80) 1994-1998 3.0L L6 2997cc Turbo 2JZ-GTE (Note: V160 Transmission - Pull Type Clutch)
Additional Information
| Package Weight (kg) | 10.8000 |
|---|---|
| Disc Diameter (Inches) | 9.8 |
| Disc Diameter (Millimeters) | 250 |
| Material | Organic |
| Pressure Plate Type | 32 |
| Weight (KG) | 9.21 |
| Spline Count | 14 |
| Spline Size (Inches) | 1-1/4 |
| Torque Capacity (ft/lbs.) | 655 |
| Torque Capacity (Nm) | 888 |
| Torque Capacity Over OE | 62% |
